Product & Services Oil Gas Division


Fabrication

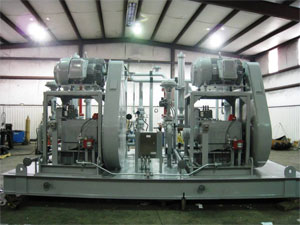

Water Injection Pump Packages



  • Horizontal Pump Packages
  • Retrowrap
  • Ultraviolet (UV) Sterilizer Packages
  • Containerized Systems
  • Water Treatment Package

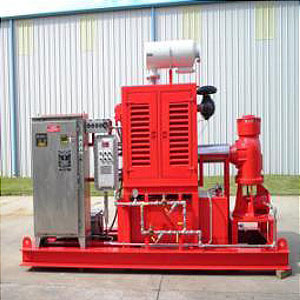

Firewater Pump Packages

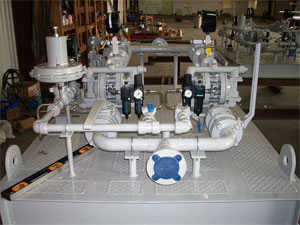

Flare Knockout

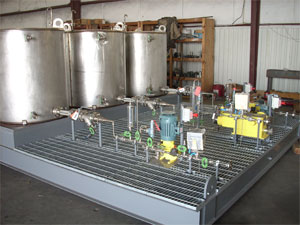

Chemical Injection

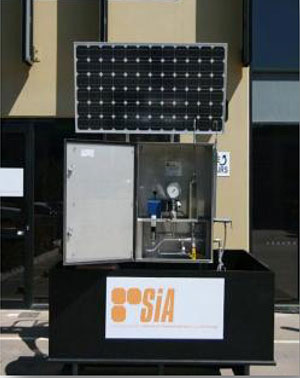

STANDARD CHEMICAL INJECTION PACKAGESSOLAR POWERED

Options Include:

  • With or without Solar Array & DC control equipment ␣␣12 or 24 VDC (Dual voltage available)
  • Satellite/3G Dual carrier Internet based Remote Monitoring & Control System (iSAT)
  • Remote Monitoring & Control including setting of Alarms of:
    • Chemical Injection Flow Rate
    • Injection Pressure
    • Low/No Flow Alarm
    • Low Battery Charge Alarm
    • Battery Charge monitor
    • Solar Array Power Output
    • Chemical Tank Low Level Alarm
    • Chemical Tank Level Monitoring
    • GPS Position
  • Local DIN Rail or Pump Mounted Continuous-Off-Timer Module (T200)
  • Bund fabricated from Engineered Plastic, Galvanised Steel, Aluminium or 316 Stainless Steel
  • All Electronic Equipment housed in Weather-proof Enclosure Coated Mild Steel or 316 SS
  • DC Solar Pump, Pressure Relief Valves Rate & Pressure Gauges and ancillary equipment housed in Weather-proof Enclosure Coated Mild Steel or 316 SS
  • Injection Pressures up to 15,000 psig (103 MPa)
  • Flow Rates up to 600 litres per day
  • Dual Seal Plunger Pumps or Hydraulic Diaphragm types (Drive: Australian Made)
  • Hazardous Area Solar Pumps available (ATEX)
  • Hazardous Area Solar Arrays available
  • Hybrid, Hazardous Area Pumps combined with Non-Hazardous Area Solar Array Packages
  • Packages built in Brisbane
  • Installation, commissioning &/or maintenance carried our on request or by annual contract
  • Air or Gas Driven Chemical Injection Pumps and Systems available
  • A.C. Single Phase & 3-Phase Chemical Injection Pumps and Systems available
  • A.C. Hazardous Area Chemical Injection Pumps available (S.A.A. & IEC Certification)
  • Offshore Models available SiA also Design & Construct Engineered Chemical Injections Systems Clients include: Origin Energy, Santos, ROC Oil, Worley Parsons
Maintenance


OUR PRODUCT


Sourcing & Supplies
